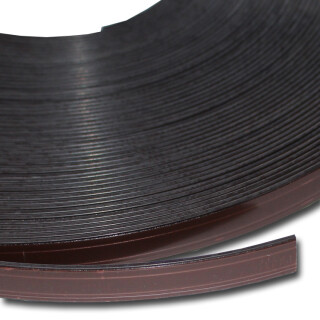

One side self-adhesive magnetic tape with width of 12,7 mm and thickness 1,5 mm. The holding force of this magnetic tape is better then normal tape because of using anisotropic magnetising. You can easily cut the magnetic tape with knife and scissors.
If you want to put the magnetic tape against each other, you can turn the tape with 180° and the magnetic tape will hold on each other. The use of metallic surface is also possible, the holding force is better.
For anisotropic magnetic tape - as offered here - the magnetisation direction is defined in production process. The magnetisation is stronger compared to normal isotropic magnetic tape. This magnetic tape complies with the most stringent quality standards.
|Magnet form||Flexible magnetic tape|
|Magnetising||anisotropic (preferably directed, highest Pullforce!)|
|Pole arrangement||multipole magnetised on one face (highest Pullforce!)|
|Quantity of poles||four poles (N/S/N/S)|
|Coating||Plain brown, self-adhesive with TESA 4965!|
|Holding force (*)||ab. 100 g/cm²|
|Please note||Magnetic tape is no primer for magnets!|
|Width B||12,7 mm|
|Hight H||1,5 mm|
|Length L||per rm. - max. 30 m / roll|
|Tolerances||L -0 / +30 mm, B ± 0,5 mm / H ± 0,1 mm|
|Weight||ab. 72 g / rm.|
|Volume||ab. 19 cm³|
|Remanence (Br)||250 - 270 mT|
|Coercive force (HcB)||175 - 190 kA/m|
|Coercive force (HcJ)||200 - 230 kA/m|
|Energy product (BHmax)||11,5 - 14,5 kJ/m³|
|max. Working temperature||80 °C|
(*) The identified holding force was determined at room temperature on a polished steel plate Fe37 with a thickness of 20 mm. The magnet was deducted vertically. A difference of up to -10% compared to the specified value is possible in exceptional cases. In general, the value exceeds the determined value.
The product conforms to the European RoHS Community legislation (2011/65/EU - RoHS - Restriction of Hazardous Substances) relating to the use and the employment of certain hazardous substances in electrical and electronic devices.
No subject to registration under the REACH Regulation.
