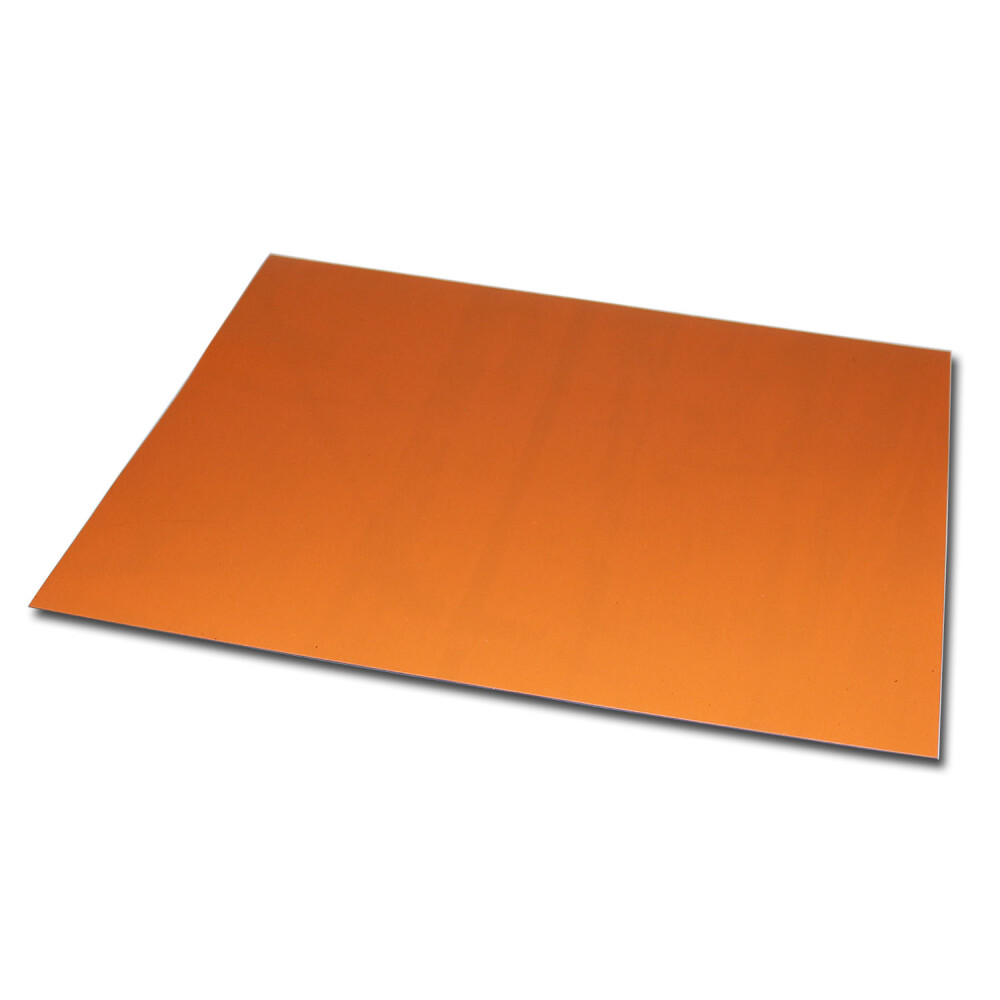

Magnetic foil Din A4 210 x 297 x 0,85 mm orange
Article details
Magnetic tape, magnetic foil mat orange, writeable
Product Description
Our flexible magnetic foil in isotropic way is offered in DIN A4 size with width of 210 mm, length of 297 mm and hight of 0,85 mm. The magnetic foil is flexible, the rear side is multipole magnetised and the front side is PVC orange mat coated.Because of PVC covering this kind of magnetic foil is writable easily by using normal permanent or non-permanent markers.
Our magnetic foils are easily to cut with scissors and cutter-knifes and can be used for different applications like product marking, as planning tapes on magnetic boards or magnetic walls or for making warning- and information signs magnetic.
Our PVC coated magnetic foils are printable in Off-Set, Screen- or digital printing.
Product Characteristics
| General Information | |
| Magnet form | Flexible magnetic foil |
| Magnetising | isotropic |
| Pole arrangement | multipole magnetised |
| Coating | PVC mat orange |
| Holding force (*) | ab. 50 g/cm² |
| Please note | Magnetic foil is no primer for magnets! |
| Mechanical Properties | |
| Length L | 297 mm |
| Width B | 210 mm |
| Hight H | 0,85 mm |
| Tolerance | L, B ± 5,0 mm / H ± 0,1 mm |
| Weight | ab. 210 g |
| Volume | ab. 53 cm³ |
| Magnetic Properties | |
| Remanence (Br) | 185 - 200 mT |
| Coercive force (HcB) | 90 - 110 kA/m |
| Coercive force (HcJ) | 125 - 150 kA/m |
| Energy product (BHmax) | 6 - 7 kJ/m³ |
| max. Working temperature | 80 °C |
(*) The identified holding force was determined at room temperature on a polished steel plate Fe37 with a thickness of 20 mm. The magnet was deducted vertically. A difference of up to -10% compared to the specified value is possible in exceptional cases. In general, the value exceeds the determined value.
